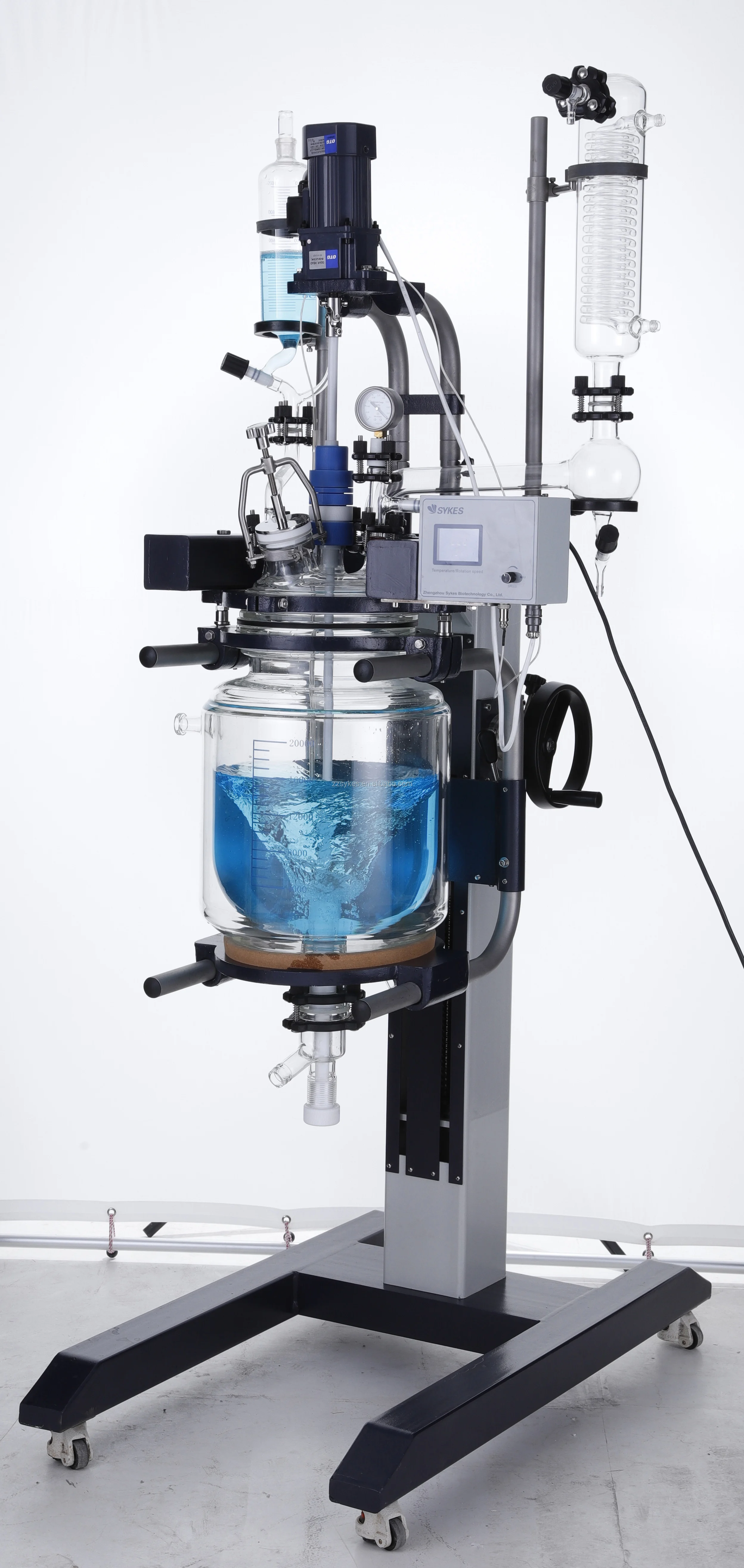

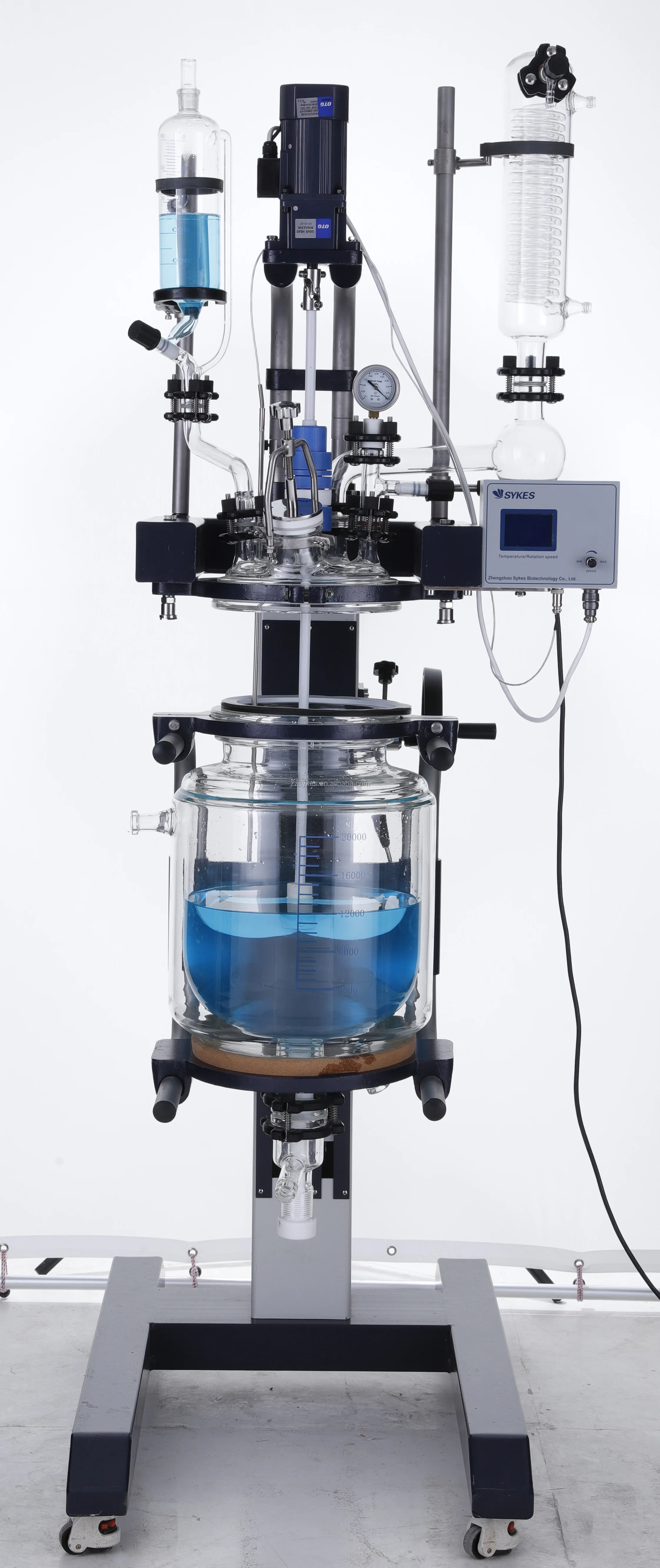

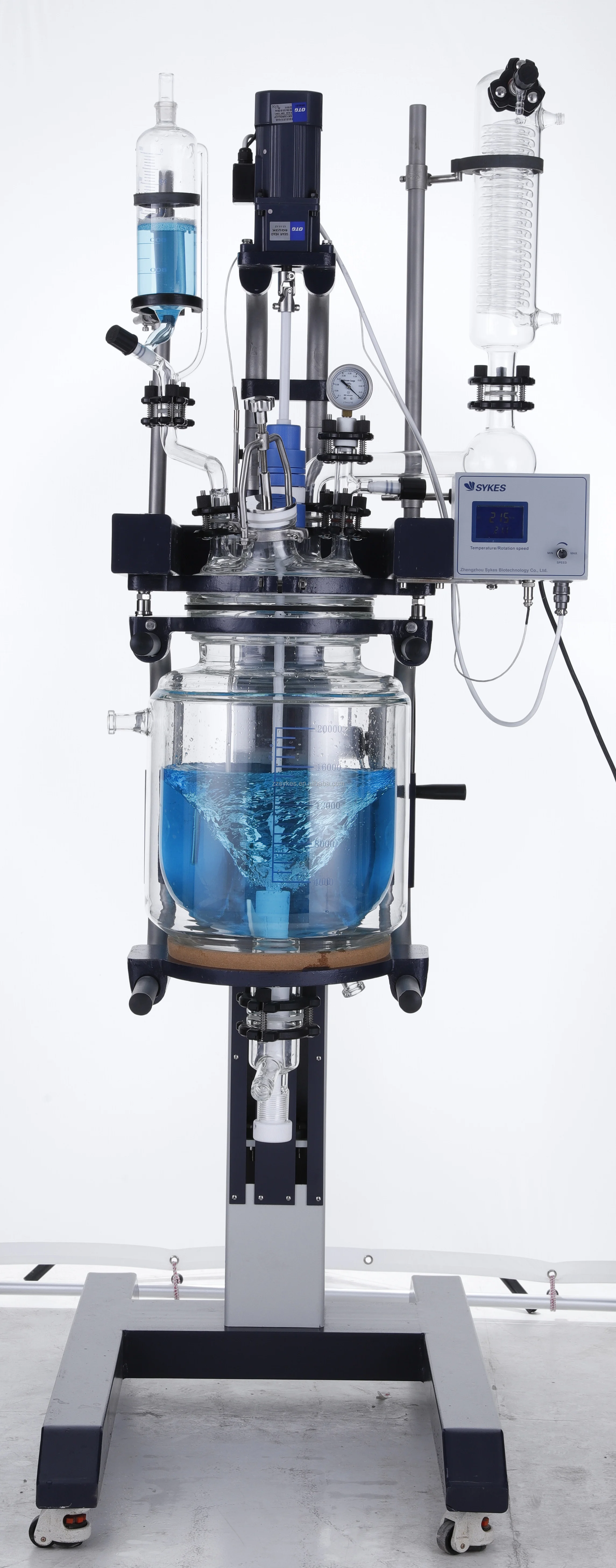

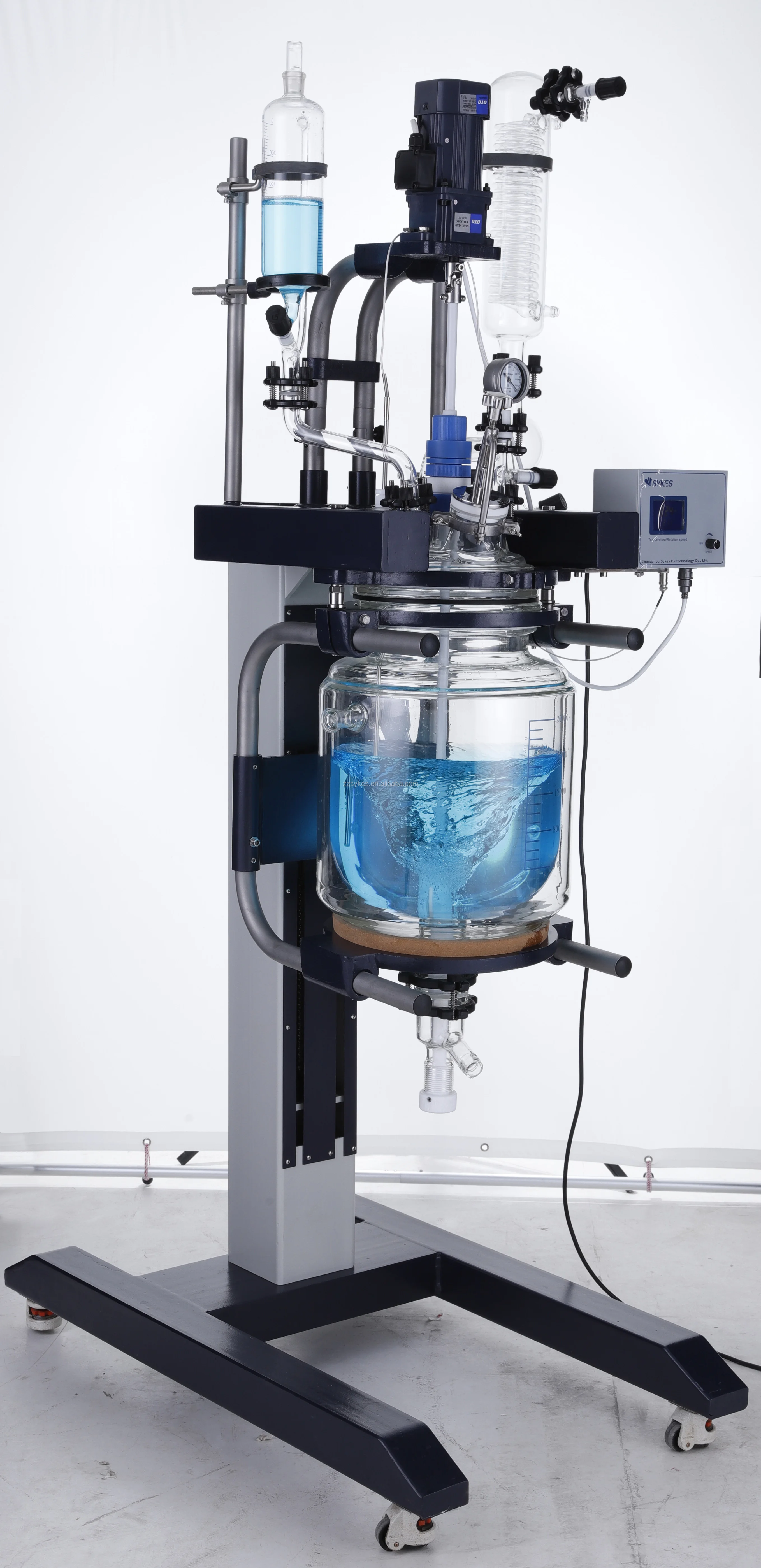

10L 20L 50L Two-layer Jacketed Lifting Glass Reactor Chemical Reactor with Vacuum Pump and Circulator

FOB Reference Price:Get Latest Price
$3,600.00 - $4,600.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GRL Series
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)

More

Graphic customization (Min. Order: 100 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Retail, Laboratory, Chemical and Pharmaceutical Industries
Condition:
New
Automatic Grade:
Semi-Automatic
Type:
Reaction Kettle
Place of Origin:
Henan, China
Brand Name:
Zhengzhou Sykes
Voltage:
220V
Power(W):
90W, 120W
Dimension(L*W*H):
Differs
Weight:
Differs
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Product:
Lifting Glass Reactor
Effective reaction capacity:
10L, 20L, 50L
Jacket capacity:
3L, 6L, 16L
Glass parts material:
High borosilicate glass 3.3
Kettle body tolerable temperature(℃):
-80~200
Kettle resistance to temp difference:
90℃
Operating pressure(MPa):
Vacuum or normal pressure
Stirring speed(rpm):
50~500
Inlet/outlet liquid circulation nozzle:
DN15
Ports on the cover:
Six ports
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Wooden Package
Port
Shanghai, Qingdao, Guangzhou, etc.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 20 To be negotiated
Video Description
Hot Recommended

0.5L ~ 2L Rotary Evaporator Total System


1L ~ 5L Two-layer Single Jacketed Glass Reactor Total System


10L ~ 50L Lifting Two-layer Single Jacketed Glass Reactor Total System


1L ~ 5L Short Path Distillation Kit


5L ~ 50L Rotary Evaporator R Series


1L ~ 5L Rotary Evaporator SK-98-1


Recirculating Chiller DL-400


1L ~ 5L Rotary Evaporator RE Series


1L ~ 100L Electric Heating Single-layer Glass Reactor DF Series


Product Description

Brief Introduction


( Lifting ) Glass reactors are mainly used for synthetic reaction, distillation and concentration of different types of materials. We have single wall, double wall and triple wall glass reactors. The reactor can be pumped to a negative pressure state according to some experimental requirements. A constant pressure funnel or an adjusting valve on the feeding bottle allows you to add material to the vessel at a uniform and controlled speed. Condenser helps to recover some materials distillated during reaction. Circulating liquid can be filled into the jacket to heat or cool materials inside. Triple wall glass reactor with two jackets, the inner jacket is for circulating liquid, and the outer layer should be pumped to vacuum condition for thermal insulation.

Application


( Lifting ) Glass reactors are widely applied in the experiment, middle-scale test, and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials. Glass reactors can be made into system devices with multi-purpose circulating water vacuum pump, diaphragm vacuum pump, low temperature circulating pump(vacuum), circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump, high temperature heating bath circulator and hermetic cooling and heating circulator.

Floor Type Water Circulating Vacuum Pump SHB Series

10L ~ 50L Lifting Glass Reactor GRL Series


-80 To +200℃ Heating/Cooling Circulator ZT Series


Technical Data

Product
Lifting Two-layer Glass Reactor
Model
10L
20L
50L
Effective reaction capacity(L)
10
20
50
Jacket capacity(L)
3
6
16
Jacket heat exchange area(m²)
0.22
0.32
0.65
Condenser heat exchange area(m²)
0.2
0.3
0.3
Glass parts material
High borosilicate glass 3.3
Kettle body tolerable temperature(℃)
-80~200
Kettle body resistance to temperature difference (℃)
90
Operating pressure(MPa)
Vacuum or normal pressure


Motor

Power(W)
90
90
120
Regulation method
Electronic speed regulation
Stirring speed(rpm)
50~500




Six ports on the cover
Stirring port
Sensor port
Condenser connecting port
Liquid charging port
Constant pressure funnel connecting port
Solid charging port
Inlet/outlet liquid circulation nozzle
DN15
Overall Power Supply(V/Hz)
220/50

Draining valve
Draining valve ground clearance: Max. 590mm
Draining valve ground clearance: Max.585mm
Draining valve ground clearance: Max.540mm
Temperature sensor material
Stainless steel covered with PTFE outside, double anti-corrosion
Stirring
Rotary vane agitator, stainless steel axis covered with PTFE outside
Dimension (mm)
1100L×660W×1990H
1100L×655W×2030H
1100L×665W×2455H

Configuration


Main Features

1) Reaction kettle can be lift up and down. It is convenient to feed materials and take the blocky crystals out of the kettle.

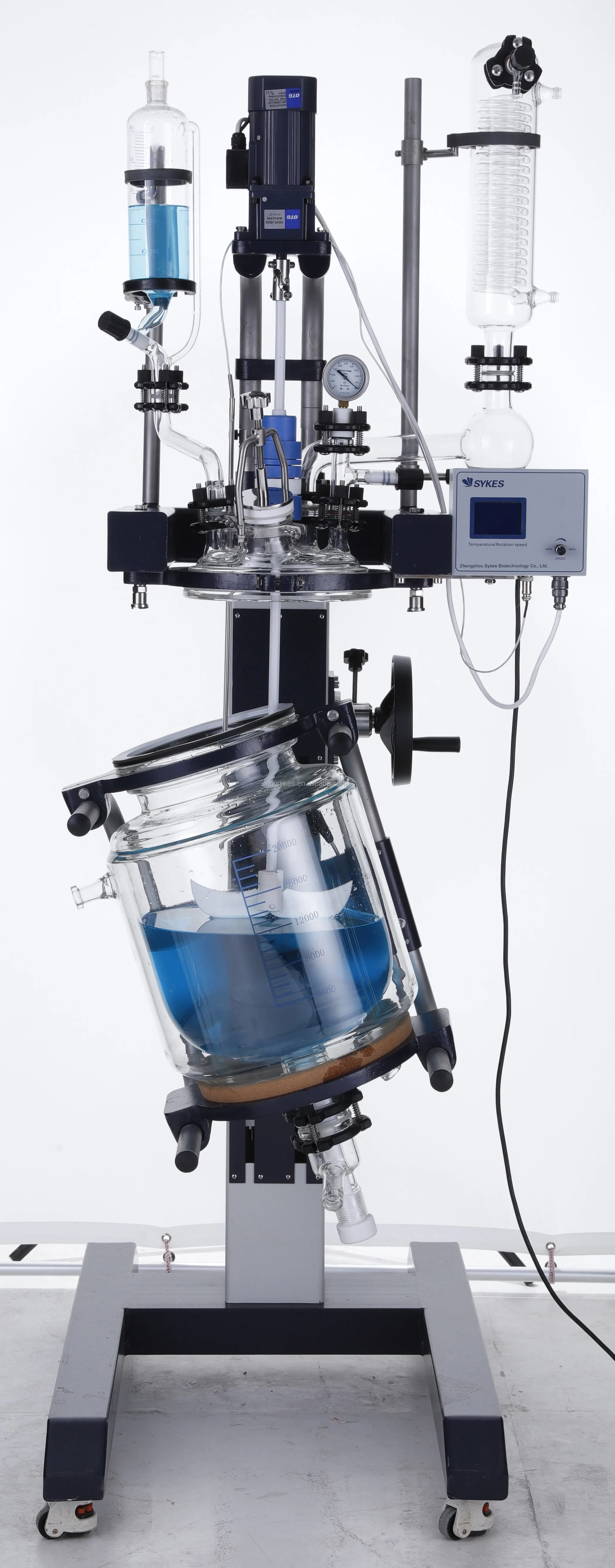

2) Reaction kettle can be roated for 120 degree, it is convenient to use and clean.



3) Use flange to seal glass interface, avoid using vacuum silicon to seal and open it difficultly.

4) Connect it using all flange interface, it can withstand the positive pressure to 0.03MPa.

Detailed Images





Operation panel



Six ports on the cover


1. Stirring port
2. Sensor port
3. Constant-pressure funnel port
4. Solid-adding port
5. Condenser port
6. Vacuum gauge port






High borosilicate glass 3.3 reaction vessel






Zero-space draining valve






High borosilicate glass 3.3 condenser







Separator






Lifting handle







High borosilicate glass 3.3 constant-pressure funnel






Motor


CE Certificate
