Pilot Scale Vacuum Distillation Essential Oil Distiller Cannabis Oil Extract 5L 10L 20L 50L Rotary Evaporator Hot Recommended

FOB Reference Price:Get Latest Price
$1,198.00 - $4,235.00 / Sets | 1 Set/Sets (Min. Order)
Application:
Distillation Food Processing Pharmaceutical Processing
Model Number:
R Series
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)

More

Graphic customization (Min. Order: 100 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Retail, University lab, Pharmaceutical and Chemical plant
Condition:
New
Power Source:
Electric
Process:
Rotary
Place of Origin:
Henan, China
Brand Name:
Zhengzhou Sykes
Voltage:
220V, 380V optional
Power(W):
2.2 ~ 8.3KW
Dimension(L*W*H):
differs
Weight:
90kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support
Product:
Rotary evaporator
Temperature range(℃):
Room temp -99 ( water bath ); room temp ~ 180 ( oil bath )
Max. vacuum degree(Pa):
399.9(Below 3mmHg)
Evaporating flask(L):
5, 10, 20, 50
Receiving flask(L):
3, 5, 10, 20
Condenser:
Vertical coil pipe
Evaporating Speed(L/h):
Water≥9, Alcohol≥19
Lifting function:
Motorized lift and manual lift
Rotation speed ( rpm ):
10~140
Motor power ( W ):
40, 250
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Wooden Package
Port
Shanghai, Qingdao, Guangzhou
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Video Description

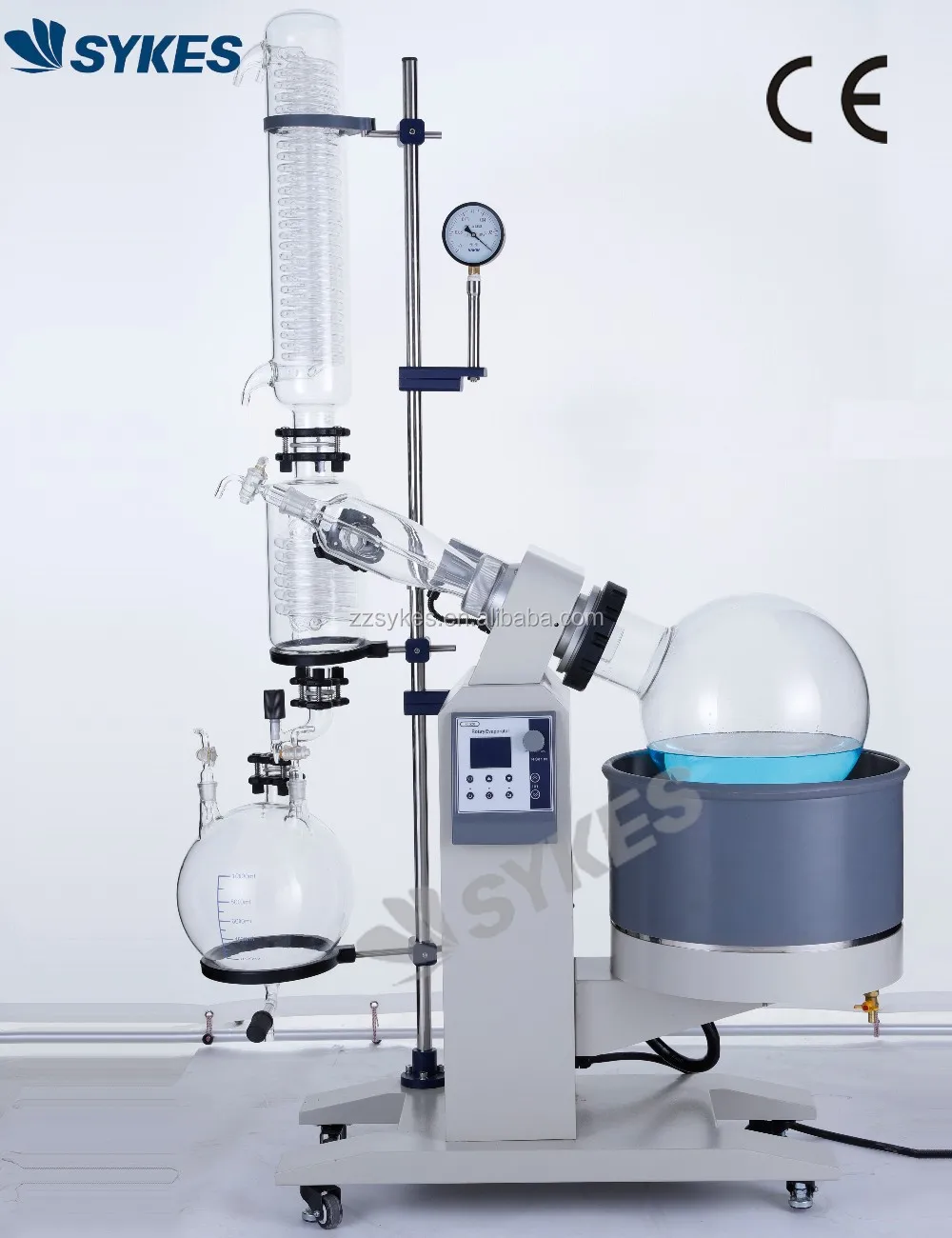

Product Description

Working Principle


An ( Explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test. They rotate and shape a thin film in negative pressure condition by heating, evaporate efficiently, and then condense and recollect solvent to purify and separate.

R1005

R1010, R1020, R1050


Application


1. An ( explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation, distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.

2. An ( explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) can be used with recirculating water vacuum pump and low temperature cooling liquid circulating pump/ recirculating chiller to form the total system.

Configuration


Technical Data


Model
R1005
R1010
R1020
R1050
Ambient temperature(℃)
5~35
5~35
5~35
5~35
Power Supply(V/Hz)
Single-phase 220/50
Single-phase 220/50
Three-phase 220/380/50
Three-phase 220/380/50
Speed-regulation of main machine
Digital display, variable frequency stepless speed-regulation
Digital display, DC stepless speed-regulation
Digital display, DC stepless speed-regulation
Digital display, DC stepless speed-regulation
Rotation speed (rpm)
10~140
20~130
20~130
20~110
Power of rotation motor(W)
40
Brushless motor,250
Brushless motor,250
Brushless motor,250
Temperature range(℃)
Digital display, Room Temperature -99
Digital display, Room Temperature -99
Digital display, Room Temperature -99
Digital display, Room Temperature -99
Max. vacuum degree(Pa)
399.9(Below 3mmHg)
399.9(Below 3mmHg)
399.9(Below 3mmHg)
399.9(Below 3mmHg)
Evaporating flask(L)
5, Flange opening Ø50

10, Flange opening Ø125

20, Flange opening Ø125

50, Flange opening Ø125

Receiving flask(L)
3
5
10
20
Condenser
Vertical type double coil pipe
Vertical type, Main + auxiliary triple-circulating cold traps
Vertical type, Main + auxiliary triple-circulating cold traps
Vertical type, Main + auxiliary triple-circulating cold traps
Condensation area(㎡)
0.27
Main condenser 0.42, Auxiliary condenser 0.22
Main condenser 0.8, Auxiliary condenser 0.39
Main condenser 0.91, Auxiliary condenser 0.52
Evaporating Speed(L/h)
Water≥2

Alcohol≥4

Water≥3.2

Alcohol≥6.5

Water≥5

Alcohol≥11

Water≥9

Alcohol≥19

Bath material
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Bath Size(mm)
Φ300×170
Φ350×220
Φ450×260
Φ550×320
Lifting function
Motorized lift
Motorized lift
Motorized lift
Motorized
Elevating stroke(mm)
0~150
0~160
0~190
0~180
Overall Power(kW)
2.2
4.8
6.3
8.3
Dimension(mm)
860×500×1000
920×550×1700
1250×600×2100
1320×770×2340

Main Features


1). Teflon (PTFE) and fluorine rubber dual rotating seal to ensure high vacuum.

2). The introduction of foreign advanced frequency control system, temperature control system, accurate and reliable.

3). A vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.

4). Water bath electric lift and manual lift support, easy to use.

5). PTFE draining valve, corrosion resistance, pollution-free.



Detailed Images


*  Large LCD display screen


* Temperature room temp ~ 99℃( water bath ), room temp ~ 180℃( oil bath )


* Rotation speed 10 ~ 140rpm

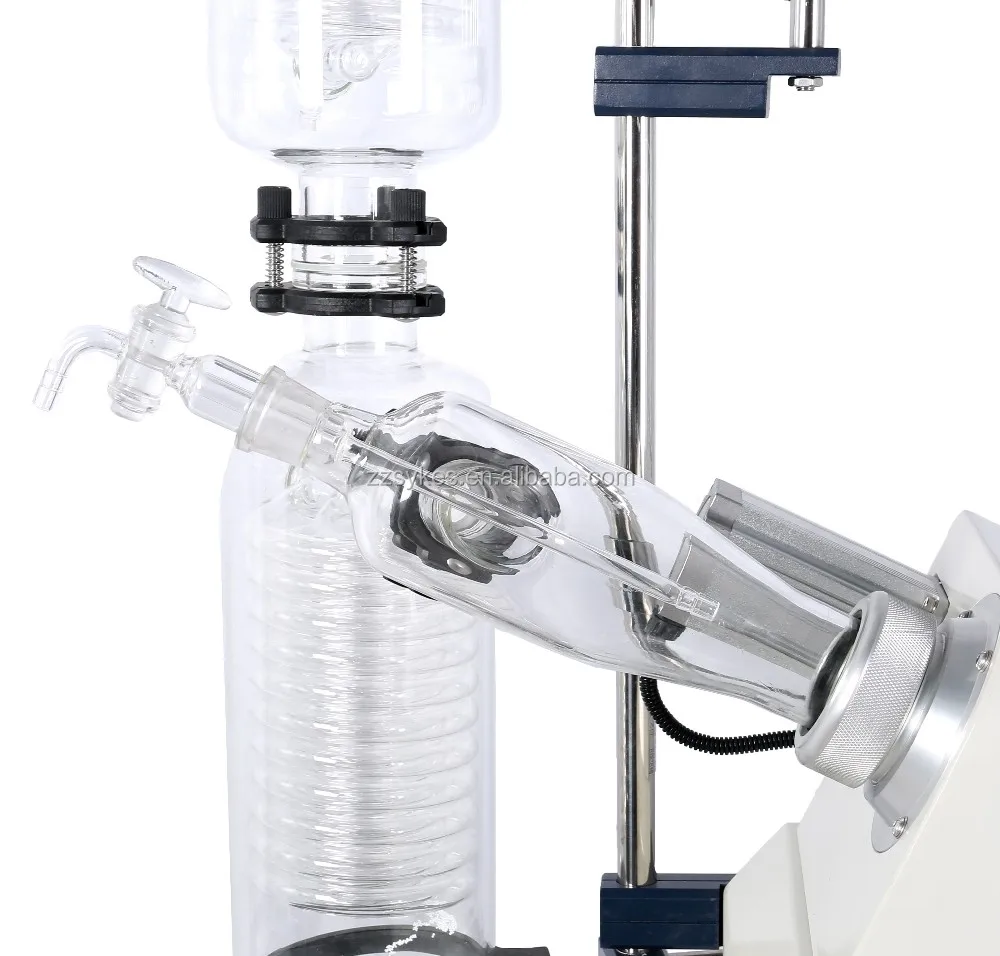

* High borosilicate glass 3.3 three-way bottle






* High borosilicate glass 3.3 condenser


* Vertical triple-circulating coil pipe to ensure efficient condensation and recovery

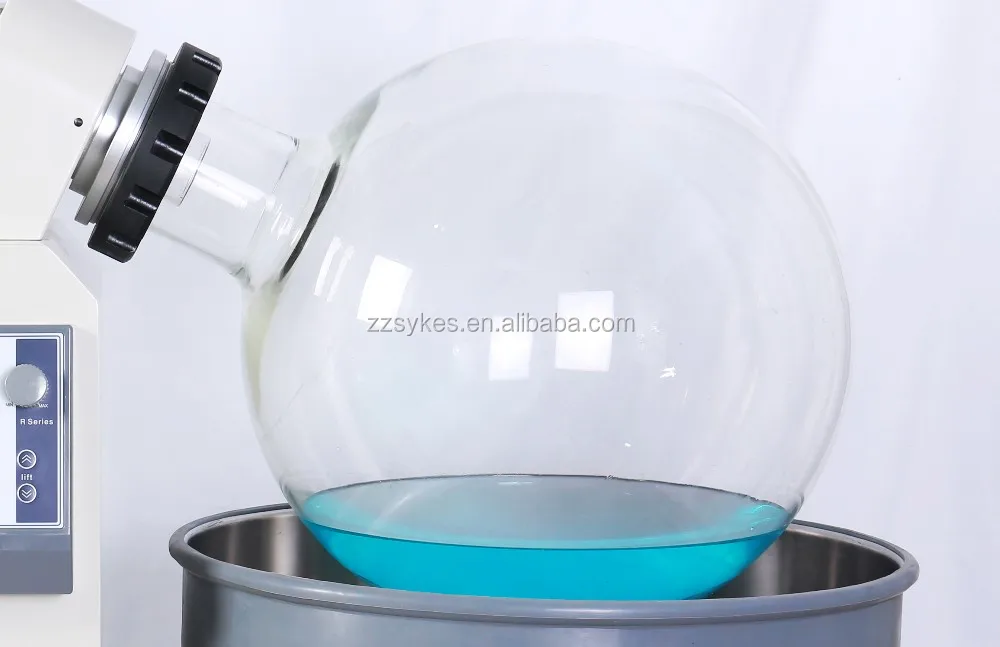

* High borosilicate glass 3.3 rotary flask


* Capacity 5L 10L 20L 50L optional

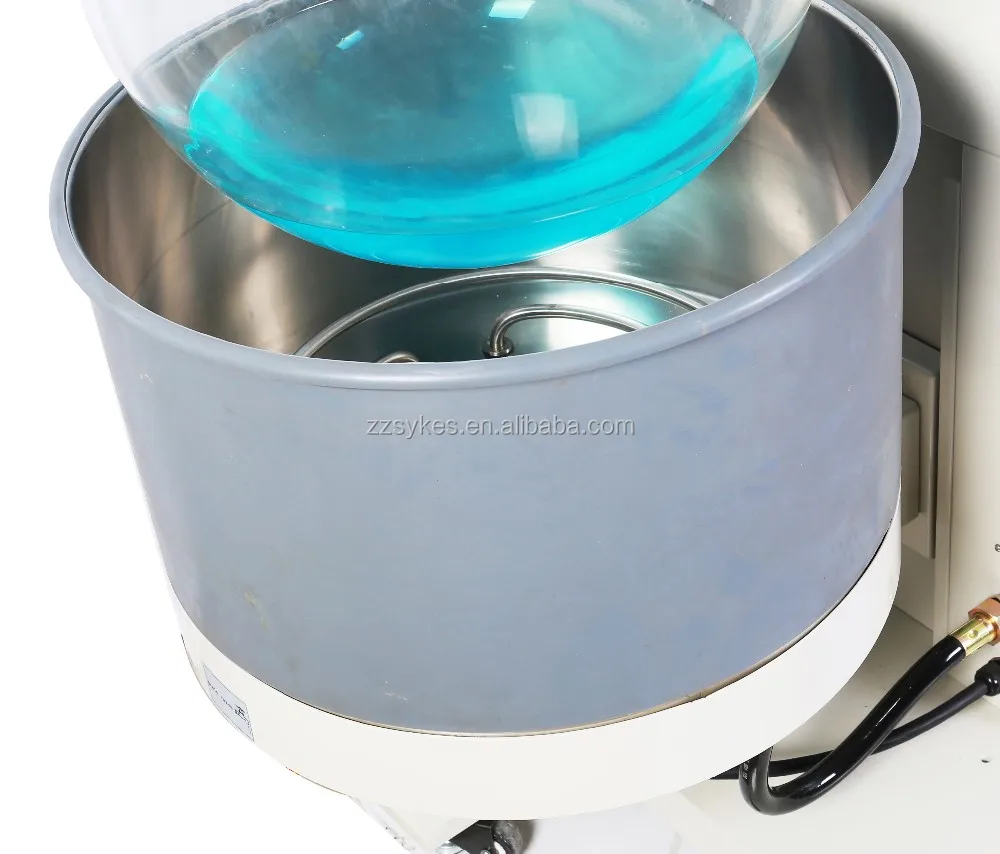

* Stainless steel 304 bath


* Rubber insulation jacket can protect operator from scalding by hot bath






* Connection between condenser and receiving bottle





* High borosilicate glass 3.3 receiving bottle


* Capacity 3L 5L 10L 20L available

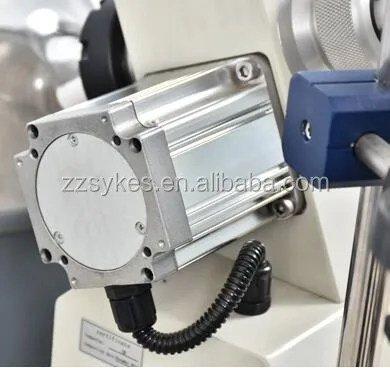

* DC brushless motor, power 250W, low noise, smooth rotation, long service life

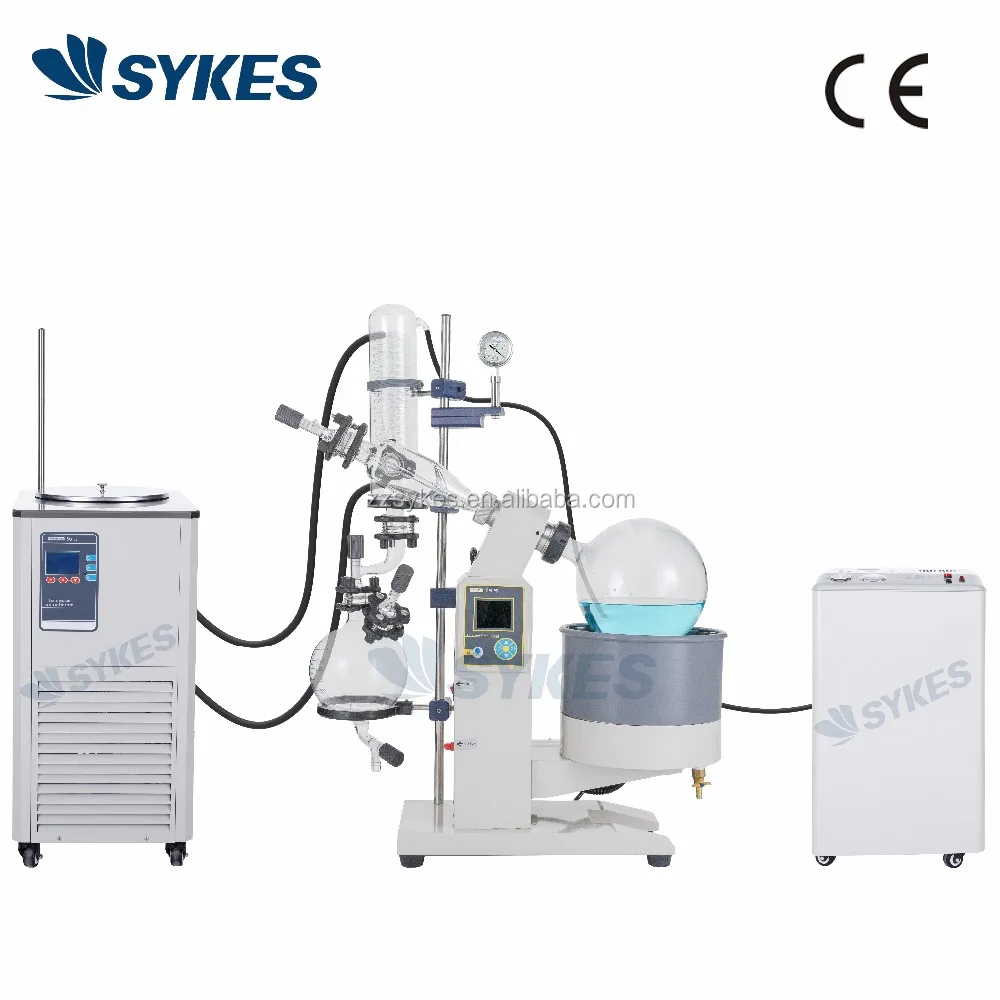

Corollary Equipments
