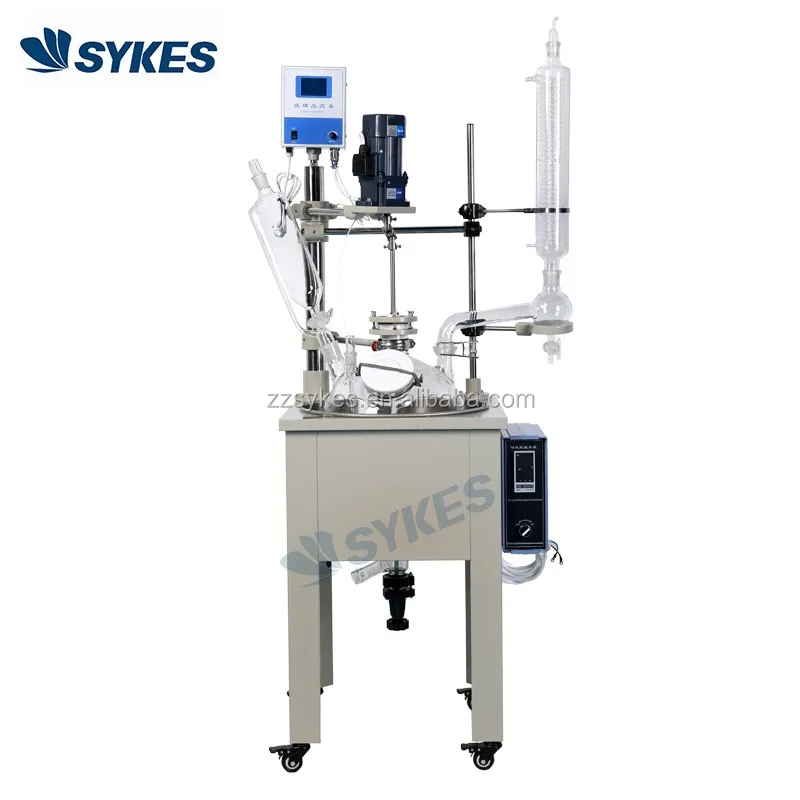

Pilot Scale 50Liter High Borosilicate Glass Single Layer Electric Heated Thermal Decomposition Pyrolysis Reactor

FOB Reference Price:Get Latest Price
$1,500.00 - $1,600.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DF-50
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Retail, Laboratory, Chemical and Pharmaceutical Industries
Condition:
New
Automatic Grade:
Semi-Automatic
Type:
Reaction Kettle
Place of Origin:
Henan, China
Brand Name:
Zhengzhou Sykes
Voltage:
220V
Power(W):
120W
Dimension(L*W*H):
750*680*2050( mm )
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Product name:
Pyrolysis Reactor
Price:
Factory Price
Reaction Glass Vessel Capacity:
50L
Constant-pressure Funnel:
2000ml
Motor Power:
120W
Stirring Speed ( rpm ):
10-600
Diameter of Stirring Rod ( mm ):
12
Power of Oil Bath:
5KW
Power Supply:
220V, 50Hz
Draining Valve:
PTFE
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Polywood Case
Port
Shanghai, Qingdao, Guangzhou, etc.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Product Description

Brief Introduction


The single layer glass reactor is a generic term for a type of vessel widely used in the process industries. It is used for a variety of process operations such as dissolution of solids, product mixing, chemical reactions, batch distillation, crystallization, extraction and polymerization. The advantages of the glass reactor lie with its versatility and visibility.

The single layer glass reactor is equipped with the stainless steel 304 bath, and add water or oil to heat the reaction glass vessel directly. The experiment can be completed at constant-temperature condition. It is very convenient and easy to operate.

Technical Data

Product
50Liter High Borosilicate Glass Single Layer Eletric Heated Thermal Decomposition Pyrolysis Reactor
Model
DF-50L
Reaction Glass Vessel Capacity
50L
Constant-pressure Funnel
2000ml
Motor Power
120W
Stirring Speed ( rpm )
10-600
Diameter of Stirring Rod ( mm )
Ø12
Power of Oil Bath ( KW )
5
Draining Valve
PTFE
Power Supply
220V/50Hz
Dimension ( mm )
750*680*2050

Main Features

1. Overall stainless steel frame and screw with strong support and hardness

2. All glass parts adopt high borosilicate glass 3.3 with good physical and chemical properties.

3. Wide working temperature range: -80℃ to 200℃.

4. Zero dead space anticorrosive draining valve. solids / liquid material can be easily released from below.

5. Stainless steel stirring rod covered with PTFE outside

6. Imported high torque reinforcement electrical machine, frequency conversion constant temperature stirring system, stable working state.

7. Equipped with the lockable casters, and it is convenient to move or fix.

8. Distillation and reflux can be carried out at the same time.

9. Ex-proof motor is optional for 10L,20L,30L,50L,100L,150L,200L .


Detailed Images

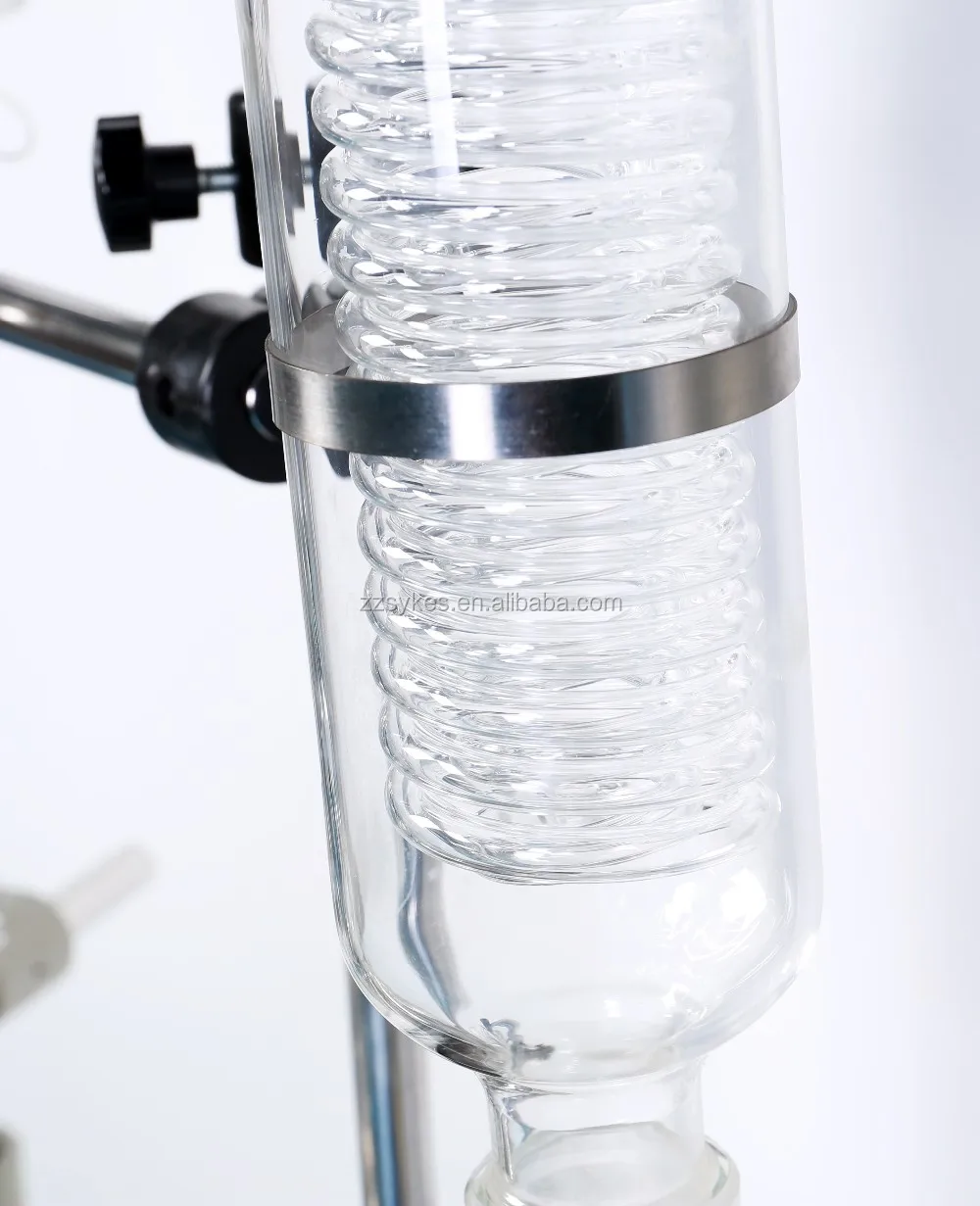

           Condenser

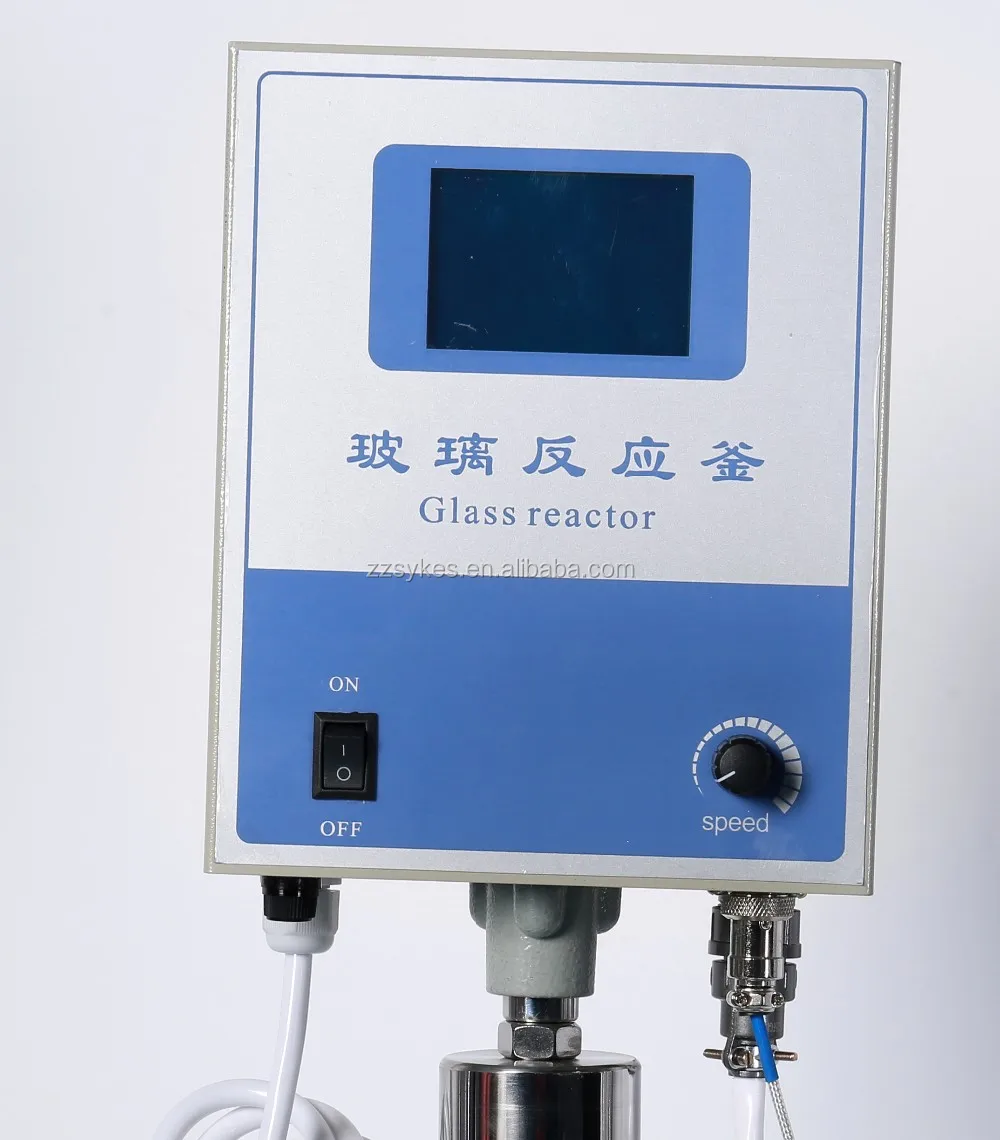

Operation Panel of Reaction Vessel

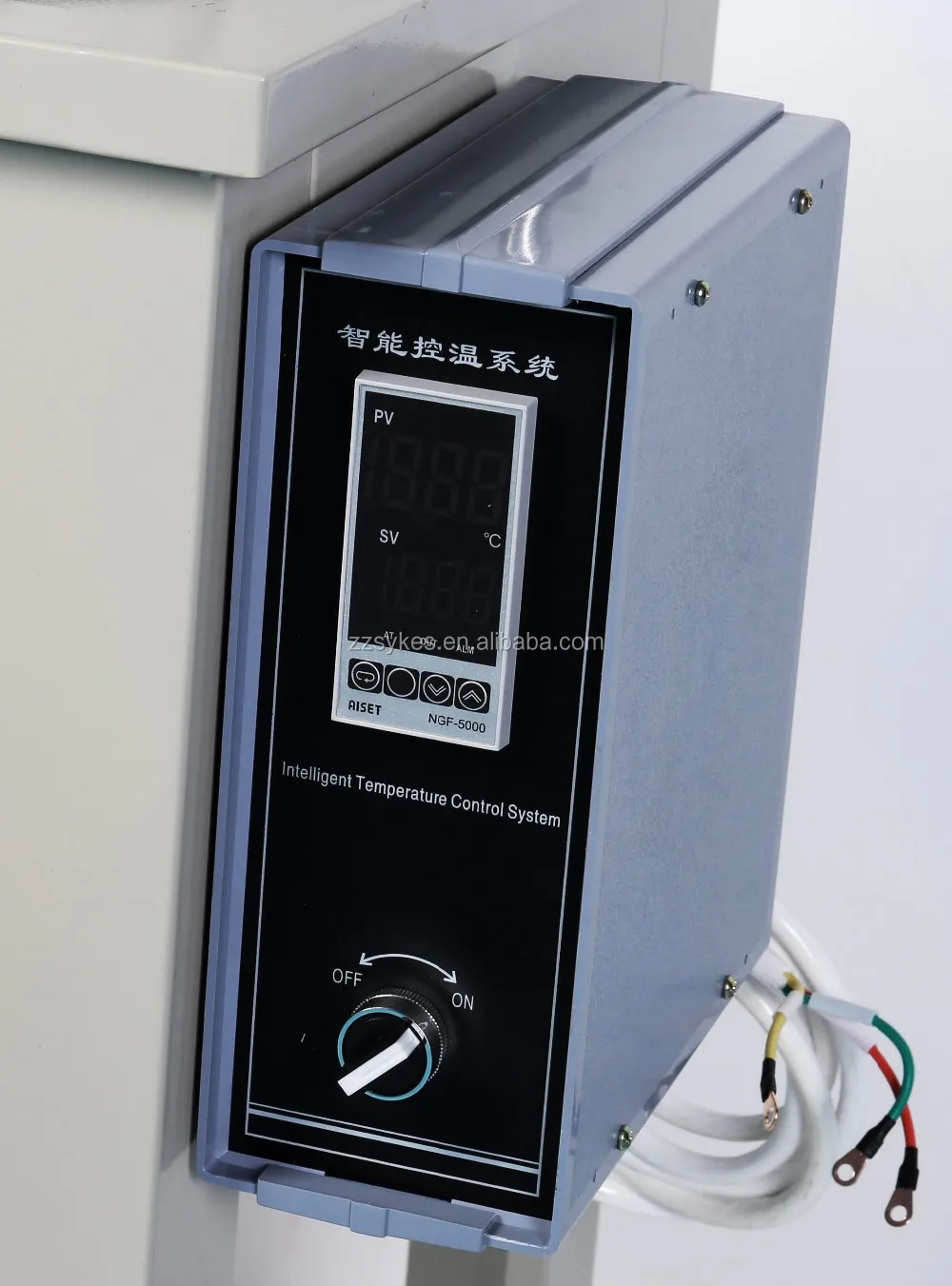

Operation Panel of Heating Bath

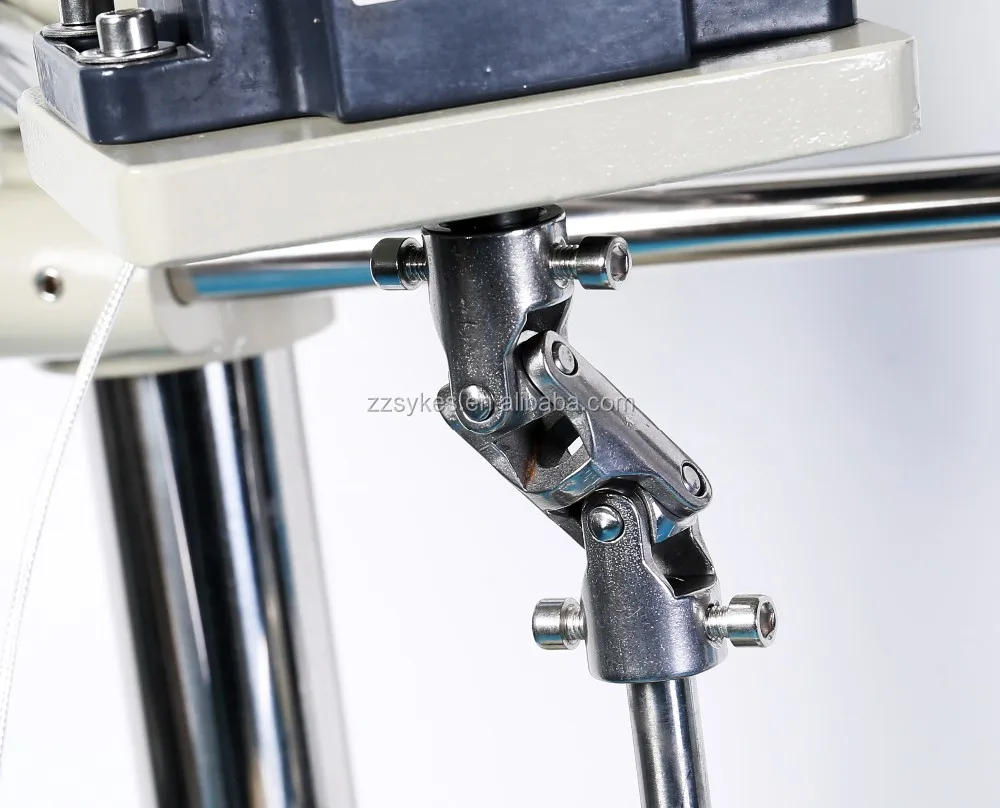

               Universal Joint

                         Motor

         Stainless Steel Heating Bath

               Stirring Port

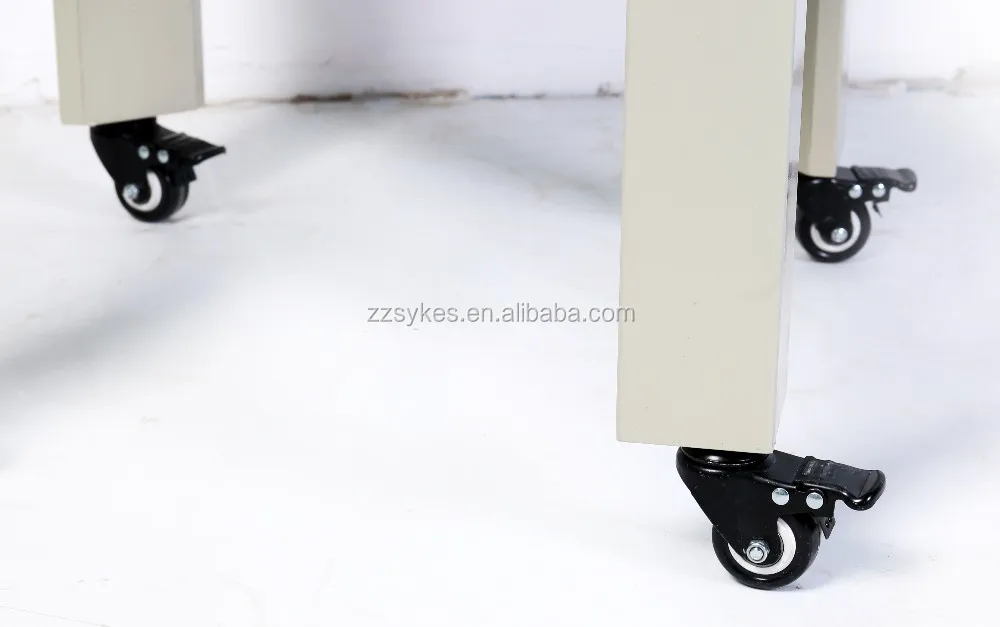

          Lockable Caster

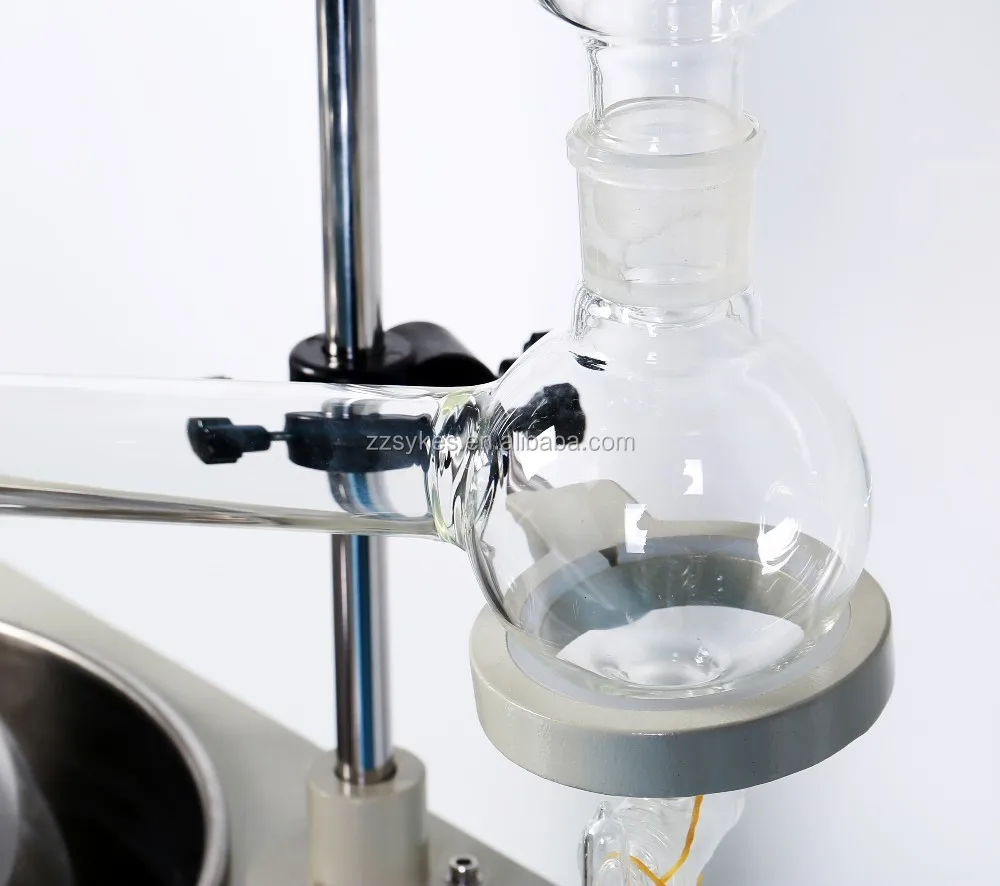

                Dispenser


More Models Optional

                                                     80L ~ 100L Single Layer Glass Reactor


                                                             1L ~ 5L Single Layer Glass Reactor


CE Certificate
Packing & Delivery
Related Products

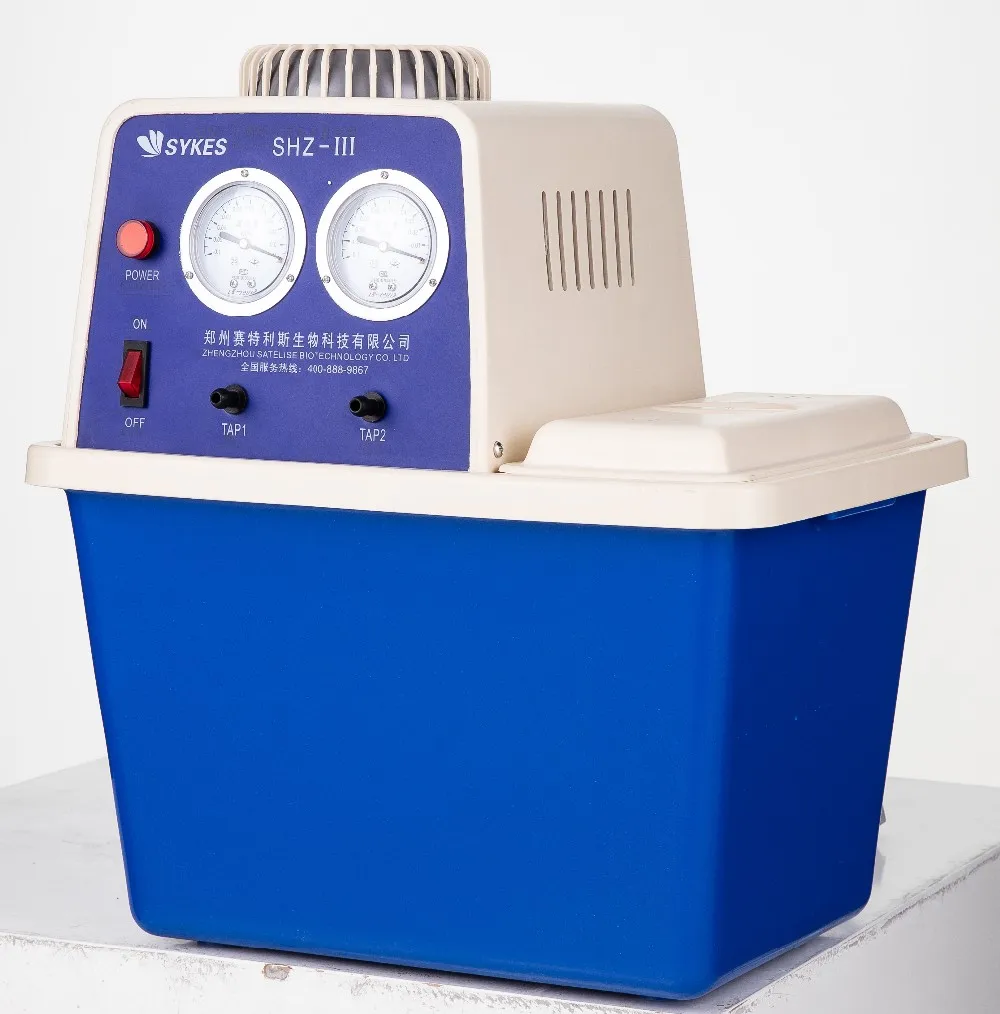

Desktop Spray Paint PTFE Water Circulating Vacuum Pump

Floor Type PTFE Water Circulating Vacuum Pump

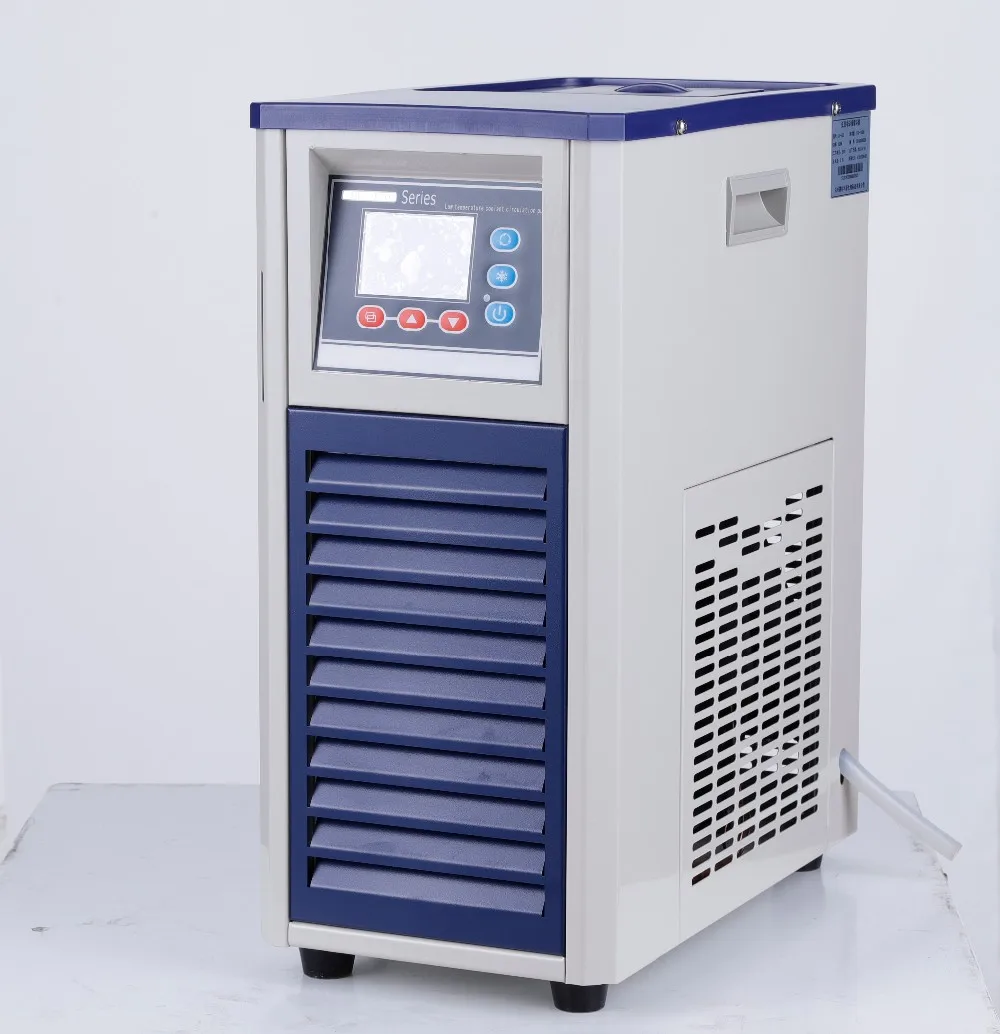

          Recirculating Chiller
